What is Polyester Geogrid?
Paragraph :

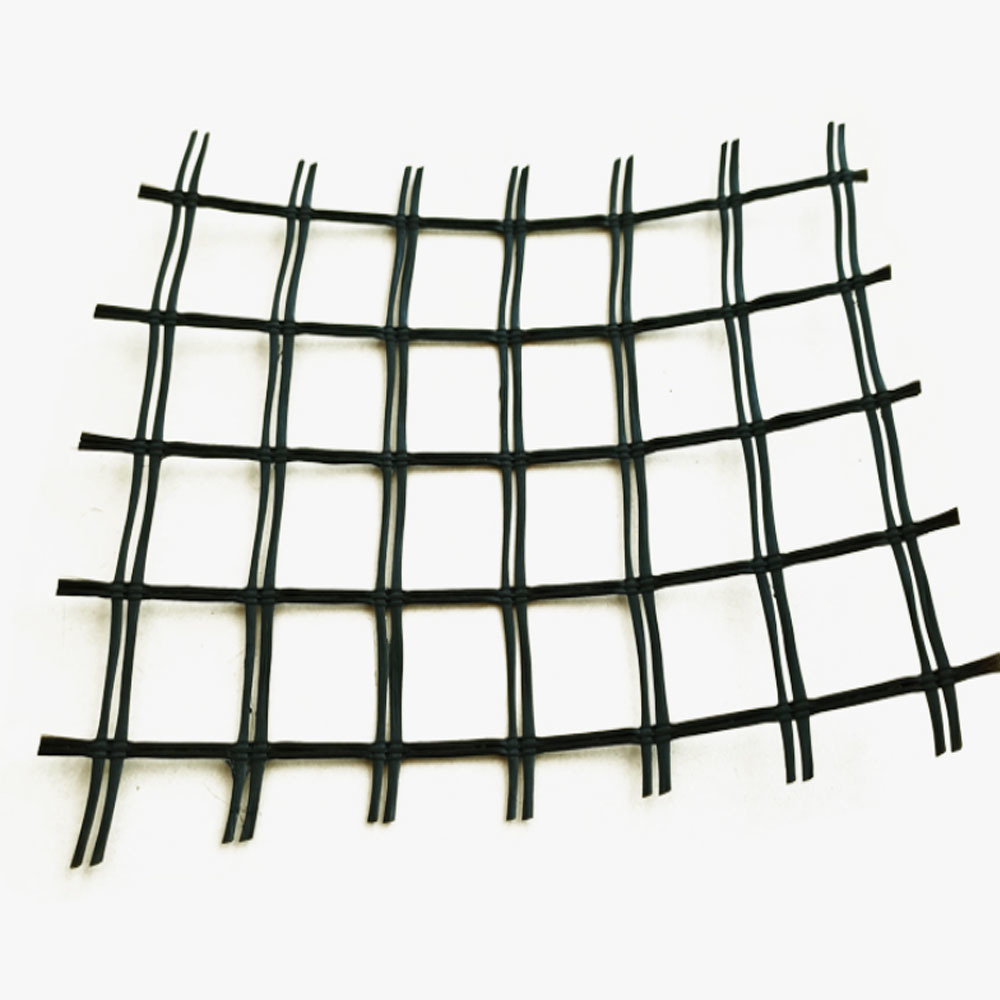

Polyester Geogrid is a high-strength, woven geosynthetic material designed for soil and structural reinforcement. Made from high-modulus polyester yarns and coated with PVC or bitumen, it provides exceptional tensile strength, low creep, and long-term durability. TYNOD polyester geogrids are widely used in road foundations, slope stabilization, retaining walls, and railway subgrades, ensuring structural reliability and performance even under extreme conditions.
Key Features & Advantages
| Feature | Description |
|---|
| High Tensile Strength | Offers outstanding reinforcement performance in both longitudinal and transverse directions. |
| Low Creep Behavior | Maintains stability and structure under long-term load conditions. |
| Chemical & Biological Resistance | Excellent resistance to acids, alkalis, and microbial degradation. |
| Durable Coating | PVC or bitumen coating protects against UV and mechanical damage. |
| Easy Installation | Flexible and lightweight design reduces labor cost and installation time. |
Technical Specifications of Polyester Geogrid
| Parameter | Unit | Typical Value |
|---|---|---|
| Material | — | High-tenacity Polyester (PET) |
| Tensile Strength (MD/TD) | kN/m | 30–200 |
| Elongation at Max Load | % | <13 |
| Aperture Size | mm | 25×25 – 50×50 |
| Coating Type | — | PVC / Bitumen |
| Roll Width | m | 3.95 – 5.9 |
| Roll Length | m | 50 – 200 |
Applications of Polyester Geogrid
Road and Highway Reinforcement – Enhances bearing capacity and prevents rutting.
Slope Protection – Controls erosion and stabilizes soil layers.
Retaining Wall Construction – Improves structural integrity and load distribution.
Railway and Airport Subgrade – Reduces deformation under dynamic loads.
Landfill and Embankment Projects – Ensures long-term stability in heavy load areas.

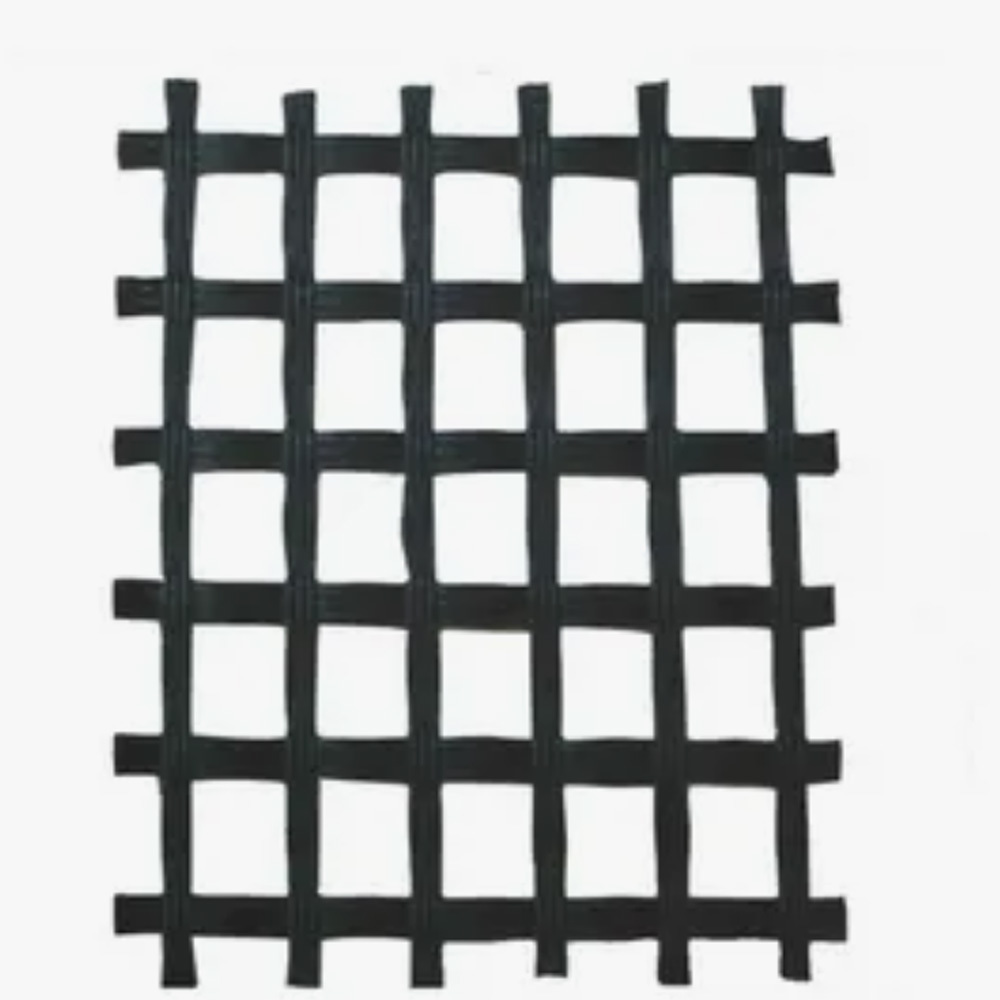

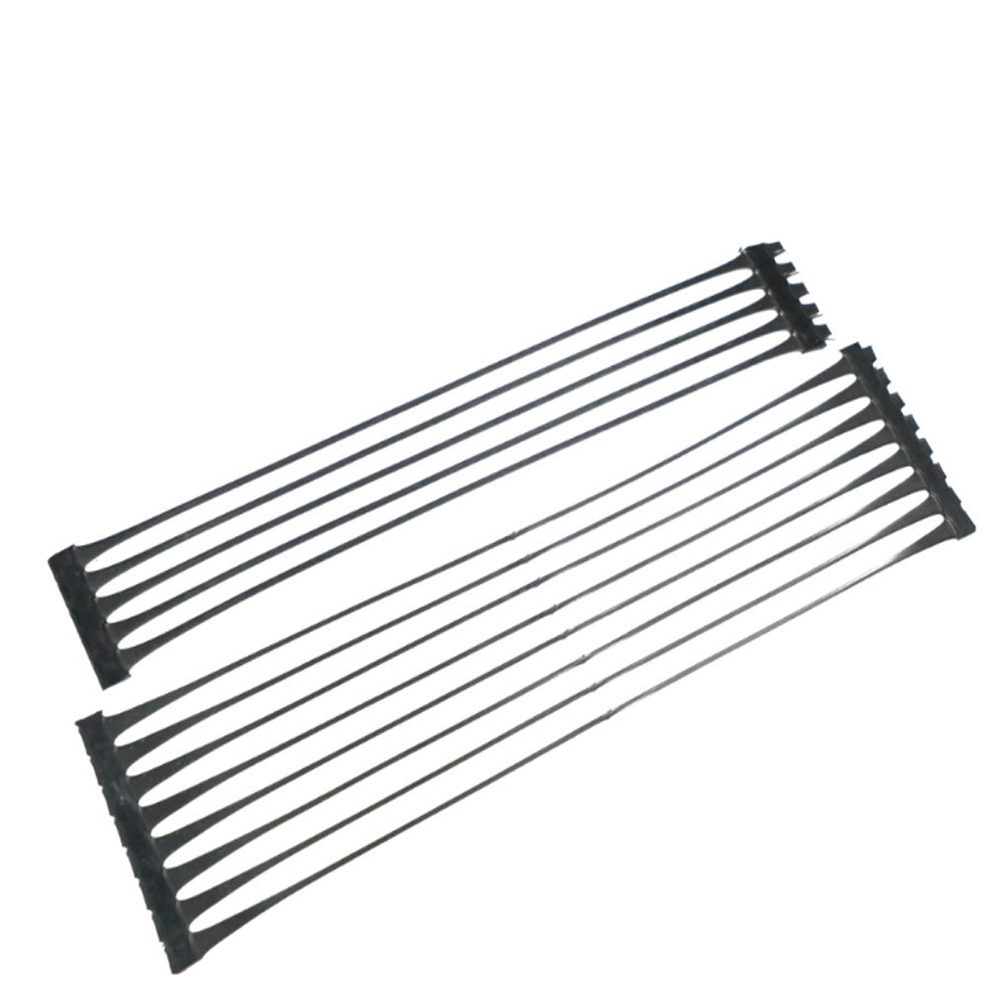

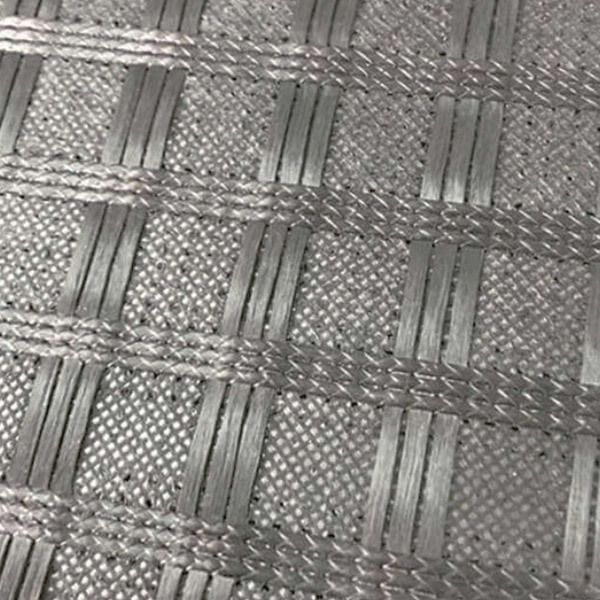

Related Products
